This type is characterised by high indication, which suits in rapid decay of supply air velocity and temperature
Differential.

    The recommended supply air temperature differential range is 10K. while the recommended ceiling height is between 2.6 to 4.0m.

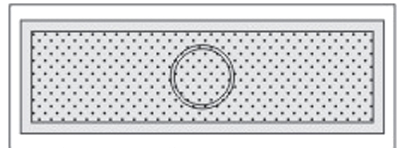

    The perforated face has 7.5mm diameter holes on 6.25mm center in a 60 degree staggered pattern.

    This PCD can be combined with any of Multi-pattern diffusers to give the desired air distribution.
